I wil design a circuit, simulation and pcb for you
About this Service
I will design an electronic circuit for your needs. I specialize in power supplies in all sorts of topologies
linear
buck / boost / buck-boost
flyback
forward
half bridge
full bridge
LLC
I can provide you with basic simulations in LTspice or Falstad.com.
I can design a custom PCB for you, export Gerber files, BOM, pick-and-place,...
I can order, assemble and test the PCB for you!
I can design a basic 3D model with your PCB and external components
Don't know what kind of circuit you need for your application? Feel free to ask, I'm sure we'll figure it out!
Feel free to contact me with any questions.
Service Features
About the Seller
From
United Kingdom
Member Since
Aug 2025
Skills:
Compare packages
| Package |
$40.00
Basic
|
$50.00
Standard
|
$60.00
Premium
|
|---|---|---|---|
| Revisions | 1 | 1 | 1 |
| Delivery Time | 1 Days | 1 Days | 1 Days |
| Project task | |||
| Software files | |||
| Total | $40.00 | $50.00 | $60.00 |
Basic
Related Services
Engg Software

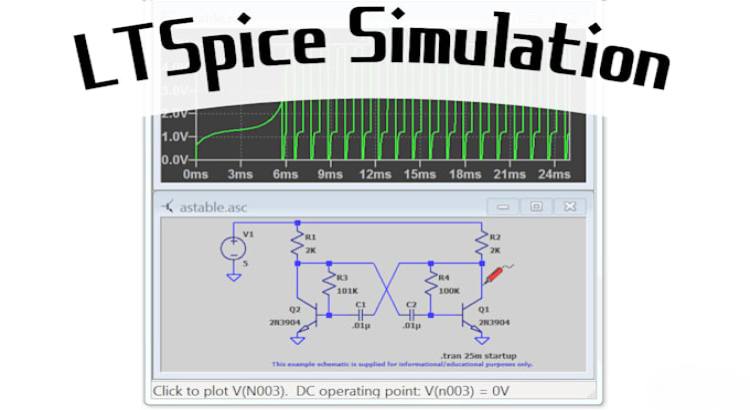

I will do logisim, ltspice, multisim,psim, lab view, matlab simulink, pcb design
Engg Software
I will perform power system analysis using pscad emtdc and etap software
Engg Software

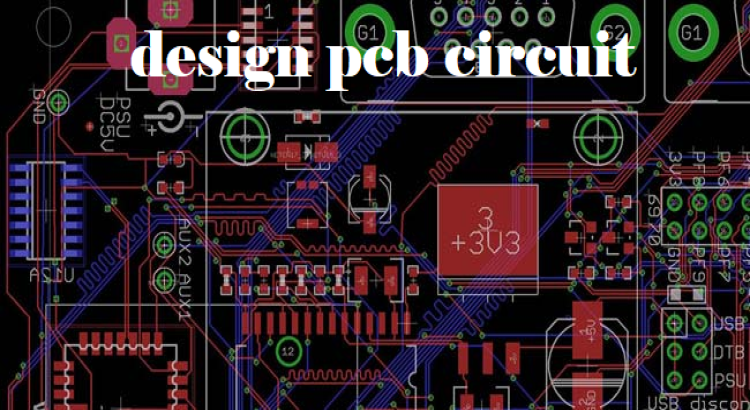

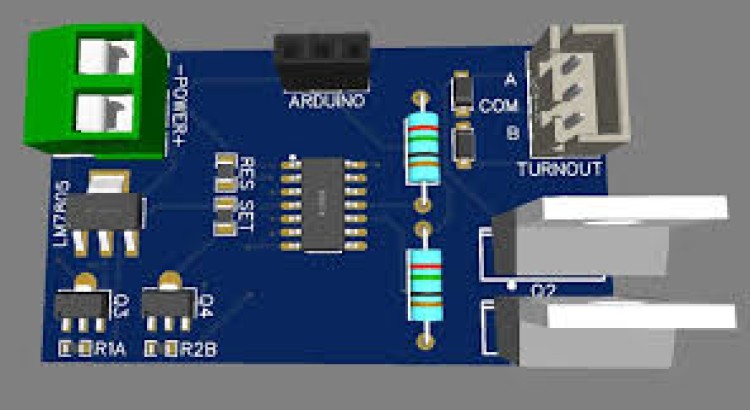

design pcb circuit write firmware schematic easyeda altium or eagle kicad layout
